Magewell Pro Capture Quad SDI

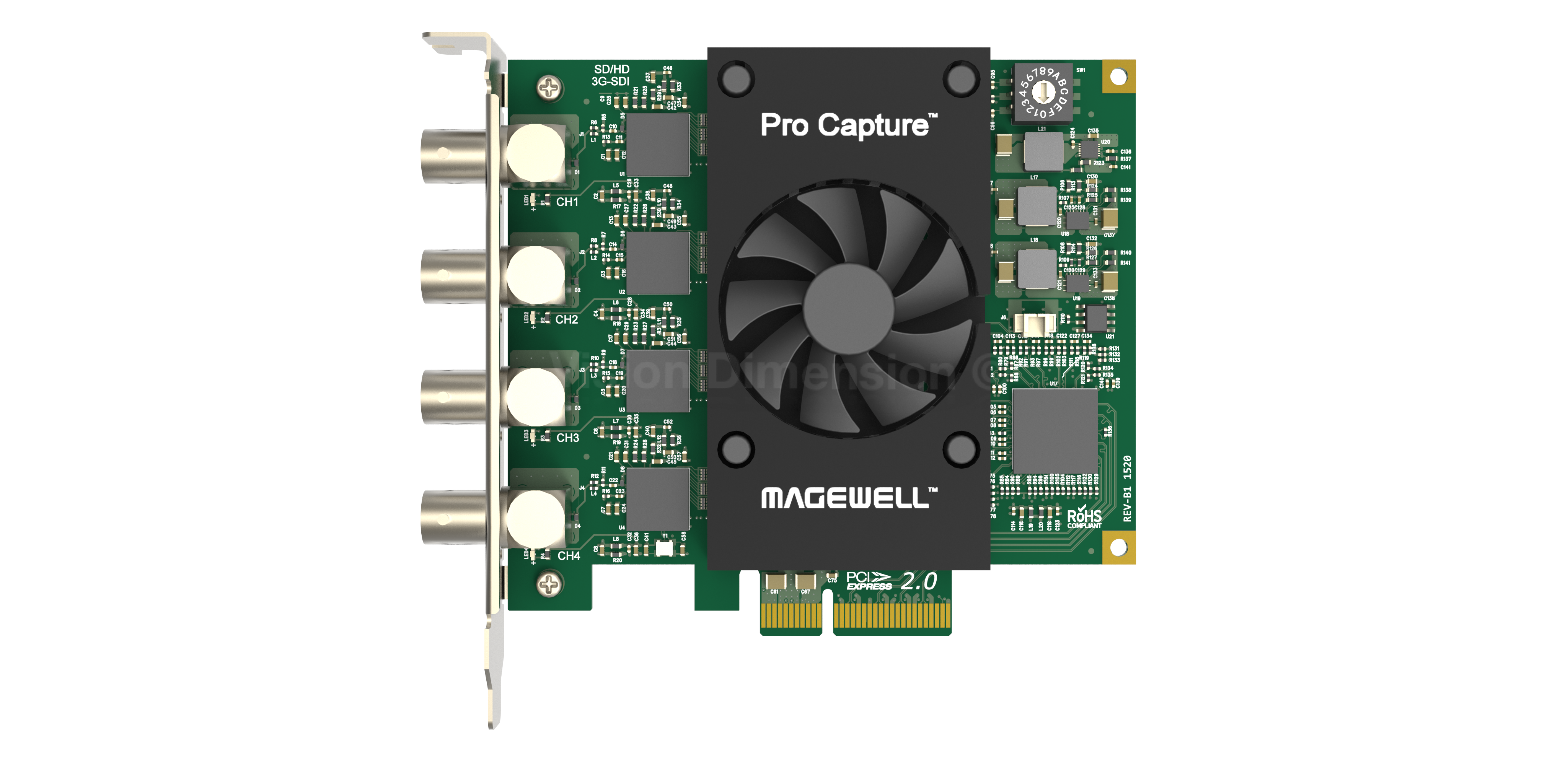

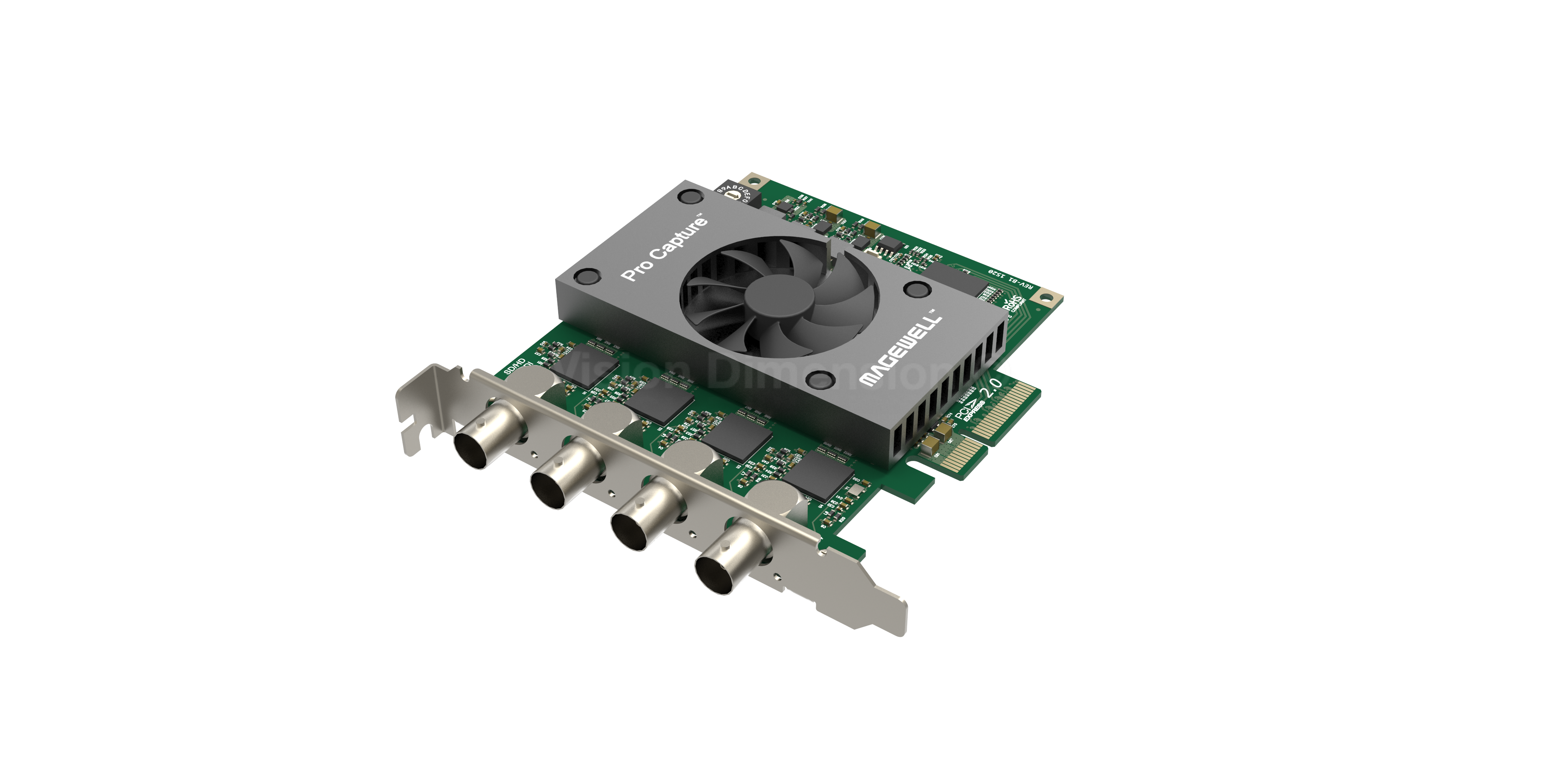

Preview: Magewell Pro Capture quad SDI side

€895.07 *

Prices plus 19% VAT plus shipping costs

Estimated delivery time 1 - 3 Days

All prices are list prices excl. 19% VAT. In order to see prices for companies or dealers, you need to login or register here.

Order number: 303029

The Pro Capture Quad SDI is an ideal solution for applications that require a single... more

Close menu

Product information "Magewell Pro Capture Quad SDI"

magewell-capture-pro-quad-sdi-banner560cd89dbce55

The Pro Capture Quad SDI is an ideal solution for applications that require a single flexible card solution for areas such as medical, lecture capture, web casting and video conferencing.
Four SDI input video capture card.

Pro Capture Quad SDI
Four-channel HD capture card
SD/HD/3G-SDI x 4

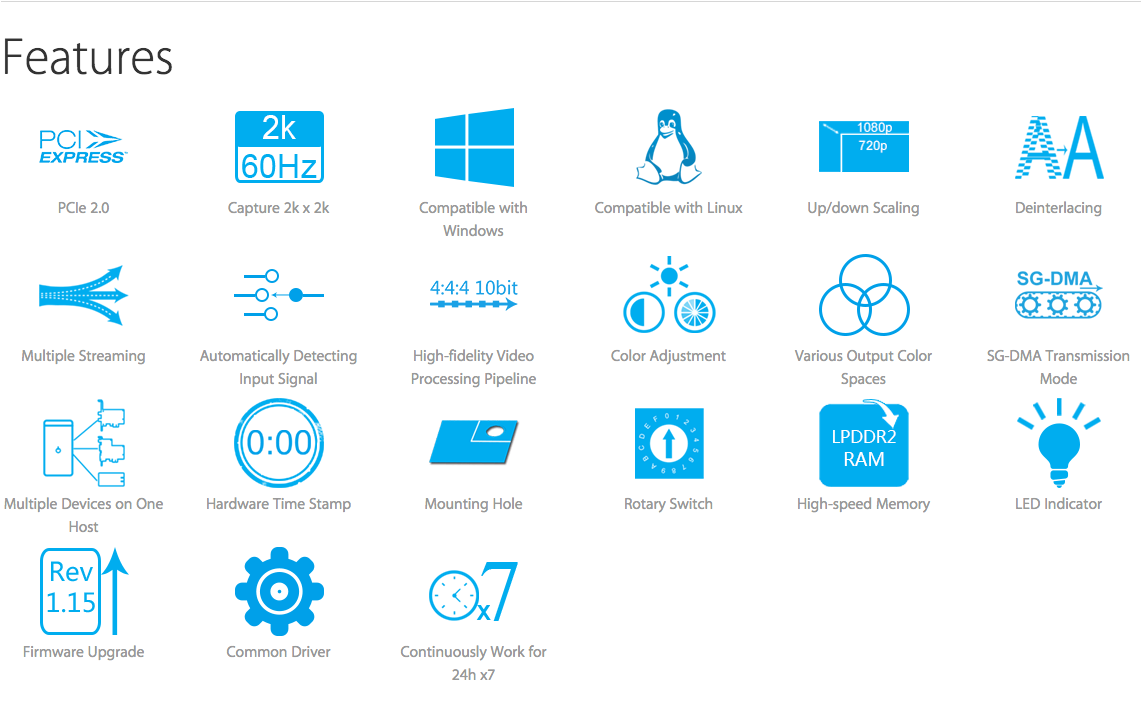

Features

PCIe 2.0, x4 Lane
Capture 2k x 2k
Compatible with Windows
Compatible with Linux
Up/down Scaling
Deinterlacing
Multiple Streaming
Automatically Detect Input Signal
High-fifelity Video Processing Pipeline
Color Adjustment
Variou Output Color Space
SG-DMA Transmission Mode
Multiple Capture Devices on One Computer
Hardware Time Stamp
Mounting Holes
Rotary Switch
High-speed Memory
LED Indicator
Firmware Upgrade
Common Drivers
Continously working for 24/7

Supported OS

Windows7 / 8 / 8.1/ 2008 / 2008R2 / 2012 (x86&x64)
Linux(V4L2 kerneldriversource code underNDA,supportsx86,x64 & armarchitecture)

Supported APIs

Windows: DirectShow, DirectKS
WaveAPI/DirectSound/WASAPI
Linux: V4L2, ALSA

Supported Software

VLC
VirtualDub
OBS
xSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow/V4L2 encoding/streaming software

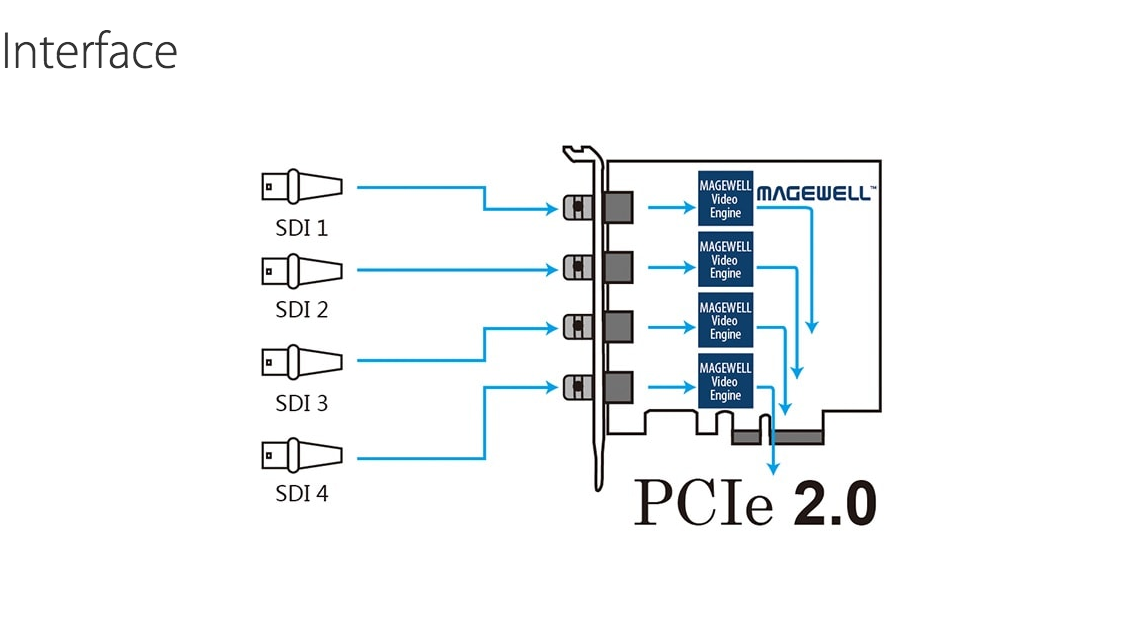

Pro-Capture-Quad-SDI-Capture-Card-PCIe-2-0

Video Input:	SDI
Input Interface:	PCI Express

Related links to "Magewell Pro Capture Quad SDI"

Available downloads:

Read, write and discuss reviews... more

Close menu

Customer evaluation for "Magewell Pro Capture Quad SDI"

Write an evaluation

Evaluations will be activated after verification.

Specifications

Supported OS	Windows 7/8/8.1/2008/2008 R2/2012 (x86 & x64) Linux (V4L2 kernel driver source code under NDA, supports x86, x64 & arm architecture)
Supported APIs	Windows DirectShow DirectKS Wave API/DirectSound/WASAPI Linux V4L2 ALSA
Supported Software	VLC VirtualDub OBS xSplit vMix VidBlaster Wirecast Microsoft Media Encoder Adobe Flash Media Encoder Any other DirectShow/V4L2 encoding/streaming software
Input Interfaces	4x BNC SD/HD/3G SDI
Output Interfaces	PCIe Gen2 x4
Input Features	Support for input video resolutions up to 2048×2048 pixels
SDI Specific Features	Integrated cable equalizer supporting cable lengths up to 230M for HD signals Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS standards Support for 2K (2048×1080) mode Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling Support for 10/12-bit color depth Support for extraction of SMPTE 352 payload identifier Support for up to 8 audio channels at 48KHz Support for extraction of audio formation information & channel status data Limited support of 3Gb-DS: only the first stream can be captured Limited support of 3Gb-DL: 2K YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60 Other modes: full supported Limited support for capture of the first link of dual link interfaces: YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60 YCbCr 4:4:4 10-bit: captured as 4:2:2 RGB 4:4:4: R/B sub-sampled
Video Output Formats	Support for output image resolutions up to 2048×2048 pixels Support for output frame rates up to 120fps. (Actual output frame rate can be limited by PCIe bandwidth, and at higher image resolutions – above 1280×1024 – by the pixel clock of the on-board video processing hardware. eg. Max frame rate at 1920×1080 = ~80fps. ) Support for 4:2:0 8-bit output formats: NV12, I420, YV12 Support for 4:2:2 8-bit output formats: YUY2, YUYV, UYVY Support for 4:4:4 8-bit output formats: V308, IYU2, V408, BGR24, BGR32 Support for 4:4:4 10-bit output formats: V410, Y410 More output formats are supported via Pro Capture SDK for DirectKS
Video Processing Features	Two video processing pipelines with ~180Mpixels/s processing bandwidth for each one Full 10-bit video processing Video cropping Video scaling Video de-interlacing Wave Blend top & bottom field Top field only Bottom field only Video aspect ratio conversion Auto or manual selection of input aspect ratio Auto or manual selection of output aspect ratio Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox) Video color format conversion Auto or manual selection of input color format & quantization range Auto or manual selection of output color format, quantization range & saturation range Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats Support for Limited or Full quantization range Support for Limited, Full & ‘Extended gamut’ saturation range Video frame rate conversion Video OSD composition Support for PNG OSD image (up to 2048×2048) Support for dynamic loading of RGBA OSD image via SDK
Multiple Cards per System	Support for multiple cards plugged to one system On-board rotary switch to set card number, with 16 positions from 0 to F System hardware device tree will display “01: Pro Capture AIO” when rotary switch is set to 1, and so on The video and audio device names displayed in your software will include the card number (set by the rotary switch)
Multiple Output Streams	Unlimited output streams for any one input channel Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream
Ultra Low Latency Support	Latency of 64 video lines Partial notification mode in SDK
Timestamp & A/V Synchronization	Hardware based 100ns high resolution clock Audio frames (192 audio samples) & video frames are stamped with hardware clock Hardware clock can be synchronized across cards (via SDK)
Video Output SG-DMA	~400MB/s per channel DMA bandwidth in PCIe 2.0 system ~200MB/s per channel DMA bandwidth in PCIe 1.0 system Support for auto detection of Intel tiled GPU surface Support for DirectGMA for AMD video adapter chipsets Support for GPUDirect for Nvidia video adapter chipsets
SDK	Pro Capture SDK for DirectShow for easy integration (Windows) Pro Capture SDK for DirectKS for maximum flexibility & performance (Windows)
Windows Driver Tweaks	All options can be controled by three levels of registry key: global level, product level and device level Video, Audio, Crossbar filter names can be customized via registry keys
Firmware Upgrade	Multiple cards in one system can be upgraded simultaneously Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed)
LED Indicator	Status LEDs indicate the working state of each channel: idle, input signal locked, memory failed or FPGA configuration failed.
Form Factor	Normal profile PCIe x1 Add-on Card 112.15mm x 102.92mm (without PCI bracket)
Power Consumption	Max current at 12V ~0.6 A Max current at 3.3V ~2.4 A Max power consumption ~14.3 W
Working Environment	Operating temperature: 0 to 40 deg C Storage temperature: –20 to 70 deg C Relative Humidity: 5% to 90% non-condensing
