Magewell Ultra Encode AIO

€769.00 *

Prices plus 19% VAT plus shipping costs

Estimated delivery time 3 - 5 Days

All prices are list prices excl. 19% VAT. In order to see prices for companies or dealers, you need to login or register here.

No shipping from December 18, 2024, through December 27, 2024

Order number: 310054

Ultra Encode AIO Advanced Streaming and Recording Encoder SKU: 531300000 (for... more

Close menu

Product information "Magewell Ultra Encode AIO"

Ultra Encode AIO

Advanced Streaming and Recording Encoder

SKU:

531300000 (for US/EU/UK/AU/JP users);

531300001 KR

Mixes video from the HDMI and SDI inputs (picture-in-picture or side-by-side) into a combined output
Allow simultaneous 6 sessions over multiple streaming protocols at 32Mbps per session
High-efficiency, low-bandwidth NDI®|HX 3 supported
Supports streaming and recording schedule
Rack-mountable form factor

Description

Magewell's Ultra Encode AIO live media encoder takes the capabilities of the original Ultra Encode Family models to a whole new level for advanced use cases. It builds on the functionality of the Ultra Encode family with advanced features including HDMI and SDI input connectivity in a single device; 4K encoding and streaming from HDMI input; simultaneous multi-protocol streaming; higher streaming bitrates; file recording; and much more. This device is ideal for high-quality live streaming of content such as sports, education and live events, as well as IP-based production and AV-over-IP. The single-channel Ultra Encode AIO can encode a live input source - either HDMI or SDI - or mix video from the HDMI and SDI inputs (picture-in-picture or side-by-side) into a combined output. Up to eight user-configurable overlays—including text, images, and a clock—can be applied to the output profile.

Specification and Features

Input Features

HDMI max input signal: 4096x2160 60fps 4:2:0; 4096x2160 30fps 4:4:4/4:2:2
SDI max input signal: 2048x1080 60fps 4:2:2
Input 16-Channel SDI embedded audio
Input 8-Channel, 24-bit HDMI embedded audio
Input Audio from 3.5mm LINE IN

Streaming Features

Natively support streaming to Facebook, Twitch and YouTube
Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI®|HX2/NDI®|HX3/HLS/TS over UDP/TS over RTP/TVU ISSP
Allow simultaneous 6 sessions over multiple streaming protocols
Support for streaming schedule for each destination

Others

LCD monitor for system status and input signal
Internet connectivity via wired Ethernet and wireless network
Remote control via Web GUI and Magewell Cloud
Provide HTTP APIs

Encoding Features

Dual stream encoding profiles: main stream and sub stream (Max bitrate: 32Mbps)
Support for H.264/HEVC video encoding
Encoding 8-channel AAC

Recording Features

Record to an SD card or external USB storage, MP4 or MOV format supported
Support for loop recording when recording to SD card
Share recorded files with NFS/CIFS/SMB
Support for recording schedule

Accessory

Included

1 x Power Adapter

Part Number: ACC10010

Magewell_2_ultra-stream-hdmi-accessory_06

1 x HDMI Cabel

Part Number: ACC00090

2 x Wi-FI Antenna

Part Number: ACC09021

7 x M2.5 Screw

Part Number: PAR10231

1 x Retainer Plate

Part Number: PAR10232

Magewell_6_1U-Short-Rack-Ear-PAR10229-x1

1 x 1U Short Rack Ear

Part Number: PAR10229

2 x 1U Long Rack Ear

Part Number: PAR10230

Video Input:

HDMI, SDI

Related links to "Magewell Ultra Encode AIO"

Available downloads:

Download Magewell Ultra Encode AIO technical Datasheet

Read, write and discuss reviews... more

Close menu

Customer evaluation for "Magewell Ultra Encode AIO"

Write an evaluation

Evaluations will be activated after verification.

Datasheet

Technical specifications

technical specifications

Magewell Ultra Encode AIO

technical specifications

Input Features

HDMI supported input & loop-through signals include:

4096x2160 30fps 4:4:4/4:2:2
4096x2160 60fps 4:2:0
2048x1080p/2048x1080i/1920x1080p/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
1280x720p 25/29.97/30/50/59.94/60
720x576 25p/50i (PAL SD)
720x480 29.97p/59.94i (NTSC SD)

SDI supported input & loop-through signals include:

2048x1080 60fps 4:2:2
2048x1080p/2048x1080i/1920x1080p/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
1280x720p 25/29.97/30/50/59.94/60
720x576 25p/50i (PAL SD)
720x480 29.97p/59.94i (NTSC SD)

Custom EDID
8/10/12-bit color
Input & loopthrough 16-Channel SDI embedded audio
Input & loopthrough 8-Channel, 24-bit HDMI embedded audio, 192kHz sample rate
Input Audio from 3.5 mm LINE IN
SD/HD/3G BNC input & loopthrough
SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL(ST 425)/3Gb-DS(ST 425) standards
HDMI Input and loop-through interfaces: HDMI 1.4a, DVI-D

Encoding Features

Dual stream encoding: main stream and sub stream
Max bitrate: 32Mbps
HDMI supported resolutions include:

4096x2160p/3840x2160p/2560x1440p30
1920x1080p/1280x720p 23.98/24/25/29.97/30/50/59.94/60
720x576p25
720x480p30

SDI supported resolutions include:

1920x1080p/1280x720p 23.98/24/25/29.97/30/50/59.94/60
720x576p25
720x480p30

H.264/H.265 (HEVC) SEI message supports system timecode or RP–188 timecode extracted from input
H.264/H.265 (HEVC) SEI message supports native CEA–608/608 over 708 captions
Converting video aspect ratio of dual streams
Encoding 8-channel AAC
Supported audio bitrates: 256/192/128/96/64/48/32/16 kbps
Extracting audio from input signal and output through LINE OUT
Encoding videos after de-interlacing
Encoding interlaced input signal as main and sub streams in the format of interlaced H.265 (HEVC)

Streaming Features

Natively support Facebook, Twitch and YouTube
Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI®|HX2/NDI®|HX 3/HLS/TS over UDP/TS over RTP/TVU ISSP
Allow simultaneous 6 sessions over multiple streaming protocols, containing 1 session of HLS, RTSP, NDI®|HX2, or NDI®|HX 3 (if included)
Specify main stream or sub stream for each streaming session
Support for streaming scheduler for each destination

Recording Features

Support for normal recording and loop recording
Record to external SD card and external USB storage
Record the main or sub stream
Download recorded files via webUI
Support for recording schedule
Video recordings in MP4 or MOV format
Share recorded files with NFS/CIFS/SMB

Configuration Management

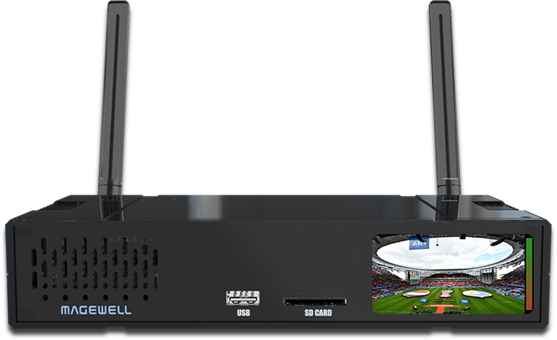

Real-time LCD monitor for system status and input signal
Register with Magewell Cloud
Remote control via WebUI and Magewell Cloud
Access WebUI via PC and smartphone
Provide comprehensive information regarding the system information of device and working status in real-time via WebUI
Video thumbnail preview via WebUI
Add up to 8 overlays, including text, picture, and clock
Configure parameters of volume and color, input and output signals, encoding profiles, no signal image, the Ethernet and Wi-Fi connection, as well as date and time via WebUI
Function as a WiFi Access Point and a WiFi station simultaneously
Update firmware
Support for Microsoft Edge/Firefox/Chrome/Safari/Opera web browsers
Provide HTTP APIs

Network Interfaces

Wired Ethernet network: 10/100/1000Mbps
IEEE 802.3af PoE
Wi-Fi 802.11 a/b/g/n/ac
3G/4G USB mobile broadband Modem (not included)

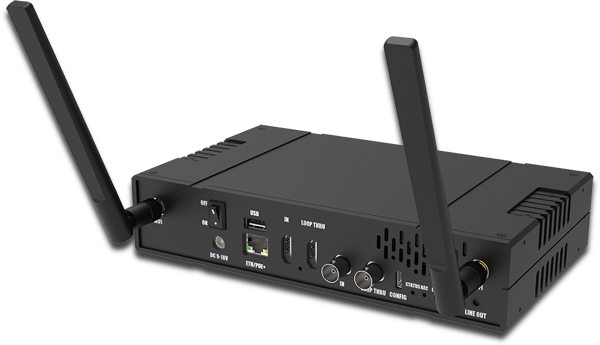

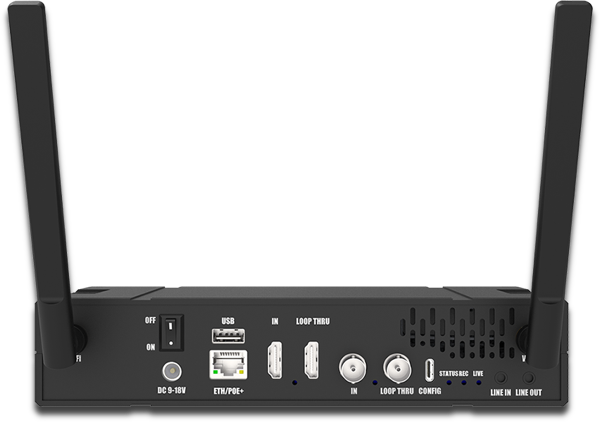

Input/Output Interfaces

SD/HD/3G BNC input and loop-through interfaces
HDMI input and loop-through interfaces
3.5mm LINE IN
3.5mm LINE OUT
USB Type-C (config)
SD card slot
2 x USB-Typ-A

LCD Display & LED Indicators

1.9 inch LCD display with 320x170 resolution enabling real-time system status monitoring
LEDs indicators show the status of power, input signal, recording and streaming

Power Supply and Consumption

DC 9 ~ 18 V
Max power consumption: TBD

Form Factor

214.9mm x 128.2mm x 44.55mm

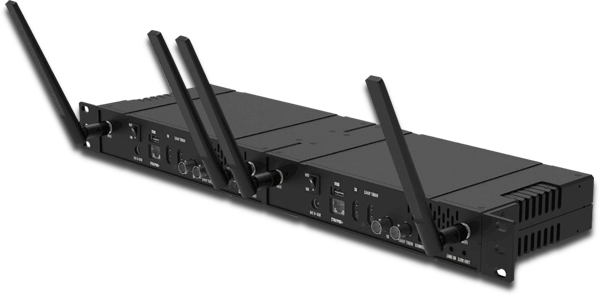

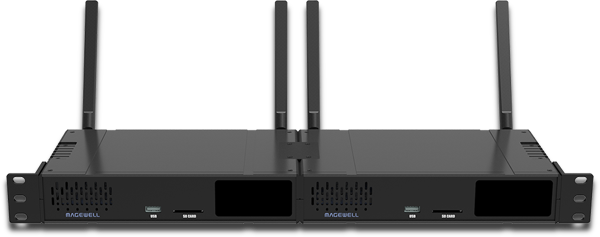

Support to mount onto a standard 1U rack with provided rack-mount kit

Accessories

1 x Screw locking DC power adapter
2 x Wi-Fi antenna
1 x HDMI cable
7 x M2.5 screws
1 x Retainer plate
1 x 1 x 1U short rack ear
2 x 1U long rack ears

Working Environment

Operating temperature: 0 to 40 deg C
Storage temperature: –20 to 70 deg C
Relative humidity: 5% to 90% non-condensing
