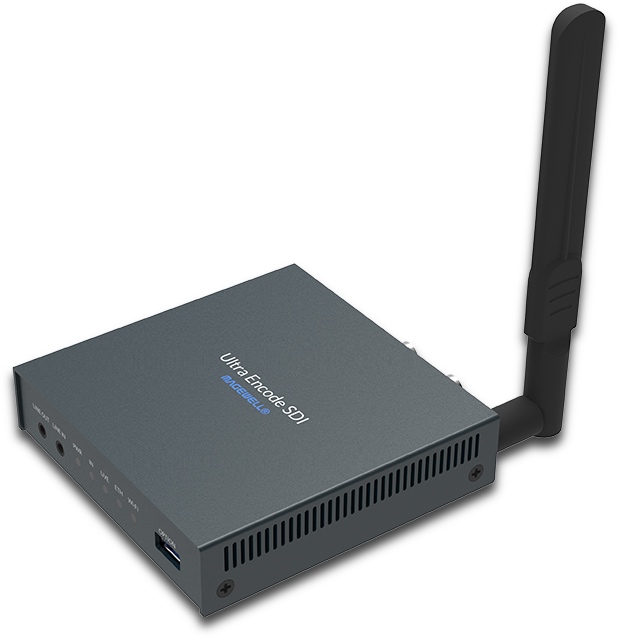

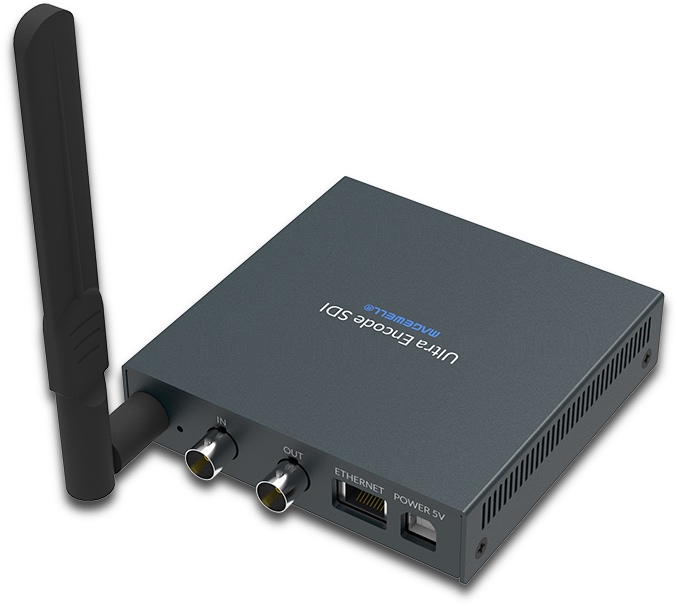

Magewell Ultra Encode SDI

Magewell
Preview: Magewell Ultra Encode SDI Preview: Magewell Ultra Encode SDI Preview: Magewell Ultra Encode SDI Preview: Magewell Ultra Encode SDI Preview: Magewell Ultra Encode SDI Interface
Magewell Ultra Encode SDI
Magewell Ultra Encode SDI
Magewell Ultra Encode SDI
Magewell Ultra Encode SDI

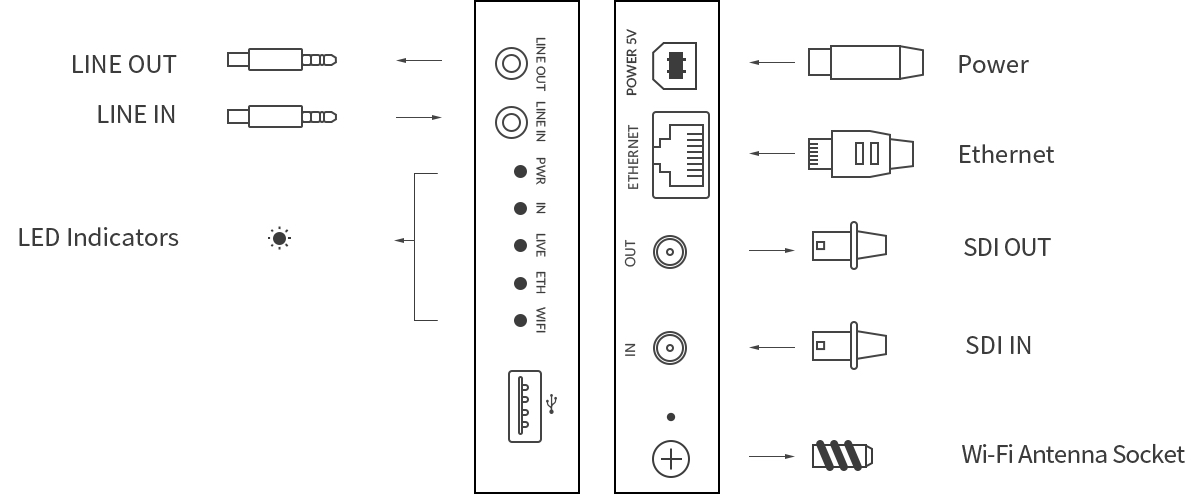

Magewell Ultra Encode SDI Interface

€472.77 *

Prices plus 19% VAT plus shipping costs

Estimated delivery time 3 - 5 Days

All prices are list prices excl. 19% VAT. In order to see prices for companies or dealers, you need to login or register here.
No shipping from December 18, 2024, through December 27, 2024
  • Order number: 309996
Description Evaluations 0 Ultra Encode User Guide technical Data
Description
Magewell Ultra Encode SDI  • Live-Streaming of... more
Close menu
Product information "Magewell Ultra Encode SDI"

Magewell Ultra Encode SDI

• Live-Streaming of H.264/H.265 • Streaming-Protocols SRT, NDI | HX, HLS • Live streaming over W-LAN or Ethernet



Description

Magewell's Ultra Encode SDI Live Streaming Media Encoder offers you a flexible and cost-effective way to stream media content from SDI sources directly and wirelessly over the Internet. Protocols such as RTMP, RTMPS, HLS are used with bit rates of more than 16 Mbit / s and configurable presets for easy streaming on Facebook, Twitch and YouTube.



Live Streaming

Magewell-Ultra-Encode-HDMI-Stream

Ultra Encode SDI supports live streaming in protocols such as RTMP, RTMPS, HLS and more with bit rates of up to 16 Mbit/s and configurable presets for easy streaming on Facebook, Twitch and YouTube. Some logs can be streamed to multiple destinations at the same time.





Spezifikationen und Eigenschaften

Input Features Encoding Features Streaming-Features Others
  • Support for up to 2048x1080 60fps input and loopthrough signals
  • Input & loopthrough 16-Channel SDI embedded audio
  • Input audio from 3.5 mm LINE IN
  • Dual stream encoding: main stream (Max bitrate: 16Mbps) and sub stream (Max bitrate: 2Mbps)
  • Support for H.264/HEVC video encoding
  • Encoding 2-channel AAC at 48kHz, 16-bit
  • Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI|HX2/HLS (push)/TS over UDP/TS over RTP
  • Allow streaming to multiple destinations simultaneously (select protocols)
  • Internet connectivity via wired Ethernet and wireless network
  • Control via intuitive Web GUI or HTTP APIs



Accessories (included)

power-adapter-98017-commonWi1bzX0h219wo

 ultra-stream-powercable-90065

1 x Power Adapter (US/EU/UK/AU/JP)
Part Number: 98017

1 x USB 2.0 Typ B Cabel
Part Number: 90065
 encode-wifi-antenna-99021 encode-t-bracket-92241
1 x WI-FI Antenna
Part Number: 99021		 1 x T-Bracket
Part Number: 92241
Video Input: SDI
Input Interface: Ethernet, USB 2.0, W-Lan
Related links to "Magewell Ultra Encode SDI"
Available downloads:
Evaluations 0
Read, write and discuss reviews... more
Close menu
Customer evaluation for "Magewell Ultra Encode SDI"
Write an evaluation
Evaluations will be activated after verification.

The fields marked with * are required.

Ultra Encode User Guide
Ultra Encode User Guide
Close
technical Data
technical Data
Close

Magewell Ultra Encode SDI technical Data

Input Features

  • Max input & loop-through signal: 2048x1080 60fps
  • Supported inputs include:8/10/12-bit color
    • 2048x1080p/2048x1080i/1920x1080p/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
    • 1280x720p 25/29.97/30/50/59.94/60
    • 720x576 25p/50i (PAL SD)
    • 720x480 29.97p/59.94i (NTSC SD)
  • Input & loopthrough 16-Channel SDI embedded audio
  • Input Audio from 3.5 mm LINE IN
  • SD/HD/3G BNC input & loopthrough
  • SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL(ST 425)/3Gb-DS(ST 425) standards

Encoding Features

  • Dual stream encoding: main stream and sub stream
  • Max bitrates:
    • Main Stream - 16Mbps
    • Sub Stream - 2Mbps
  • Supported resolutions:Supported frame rates: 60/59.94/50/30/29.97/25/24/15/10/5fps
    • HD: 1920x1080, 1600x1200, 1440x1080, 1440x900, 1280x1024, 1280x960, 1280x800, 1280x720, 1024x768
    • SD: 960x540, 800x600, 768x576, 720x576, 720x540, 640x480, 640x360, 480x360, 480x270
  • H.264/H.265(HEVC) video encoders
  • Encoding 2-channel AAC audio at 48kHz, 16-bit
  • Supported audio bitrates: 256/192/128/96/64/48/32/16 kbps
  • Extracting audio from input signal and output through LINE OUT

Streaming Features

  • Natively support Facebook, Twitch and YouTube
  • Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI|HX2/HLS (push)/TS over UDP/TS over RTP
  • Allow simultaneous sessions over the same streaming protocol. Streaming protocols are as follows.Stream only 1 session of HLS (push), RTSP, or NDI|HX2
    • Up to 6 sessions of TS over RTP and TS over UDP simultaneously
    • Up to 6 sessions of SRT Caller and SRT Listener simultaneously, containing one SRT Listener session at most (max 8 clients simultaneously)
    • Up to 6 sessions of RTMP and RTMPS simultaneously
  • Total bitrates for different network connection types:Specify streaming main stream or sub stream for each session
    • 24Mbps for all streams is recommended for a wired network connection
    • 16Mbps for all streams is recommended for a wireless network connection

Web UI Management

  • Provide comprehensive information regarding the system information of device and working status in real-time
  • Video thumbnail preview
  • Configure parameters of volume and color, color format and quantization of input and output signals, stream profiles, as well as the network connection
  • Update firmware
  • Export configuration profiles of the device
  • Support IE/Edge/Firefox/Chrome/Safari/Opera web browsers
  • Provide HTTP APIs

Network Interfaces

  • Wired Ethernet network: 10/100/1000Mbps
  • Wi-Fi 802.11 a/b/g/n/ac
  • 3G/4G USB mobile broadband Modem (not included)

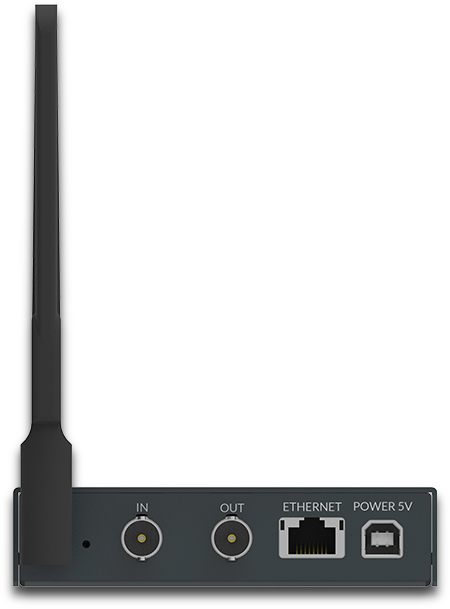

Input/Output Interfaces

  • SD/HD/3G BNC input and loop-through interfaces
  • 3.5mm LINE IN
  • 3.5mm LINE OUT

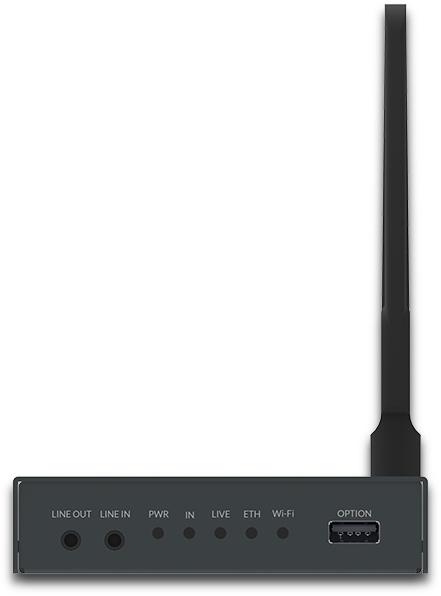

LED Indicators

  • LEDs indicating the status of power, input signal, streaming, Ethernet and Wi-Fi connection

Power Supply and Consumption

  • DC 5V/2A
  • Max power consumption: ~7.6 W

Form Factor

  • 106.6mm x 106.2mm x 25mm

Accessories

  • AC adapter
  • Wi-Fi antenna
  • USB 2.0 Type B cable
  • T-bracket

Screw Mounting Hole

  • 2 x M3 threaded hole
  • A standard 1/4"-20 socket provided by T-bracket

Working Environment

  • Operating temperature: 0 to 40 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative humidity: 5% to 90% non-condensing
