Magewell USB Capture SDI 4K Plus

€472.77 *

Prices plus 19% VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-2 days

All prices are list prices excl. 19% VAT. In order to see prices for companies or dealers, you need to login or register here.
  • 303508
USB Capture SDI 4K Plus One-channel 4K capture device Part Number: 32100 SKU:... more
Product information "Magewell USB Capture SDI 4K Plus"

USB Capture SDI 4K Plus

One-channel 4K capture device
Part Number: 32100
SKU: 321000000

  • Capture SD/HD/3G/2K/6G SDI + embedded audio
  • Loop-through SD/HD/3G/2K/6G SDI
  • Audio input via Line in
  • Extract SDI embedded audio and output via Line out

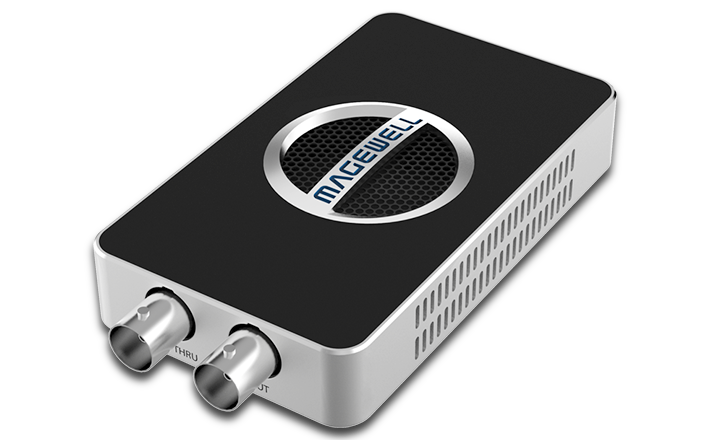

Magewell_USB-Capture-SDI-4K-Plus_1c45pERJB73MGF

Description


The USB Capture SDI 4K Plus video capture device from Magewell's USB Capture Plus family, captures SDI signals with embedded audio with an input resolution of 4096×2160p. The supported recording resolution is up to 3840x2160p 30fps or 1920x1080p with 90fps. SDI enables transmissions of up to 150m for 3G-SDI signals, 75m for 6G-SDI signals. The device has a loop-through function which allows the connection of a control monitor. In addition, audio signals can be fed in or tapped off via the built-in 3.5mm jack connections. The devices have a Direct Show interface and are therefore compatible with common third-party software (Skype, Zoom, VLC media player, OBS Studios, etc.). Microsoft Windows, Linux and Mac OS operating systems are supported. Due to the Plug&Play functionality, the devices are immediately ready for use and do not require any additional driver installation.

Interface


Magewell_USB-Capture-SDI-4K-PlusoN4S1Ym2jfVNW
Specifications & Features

Interface

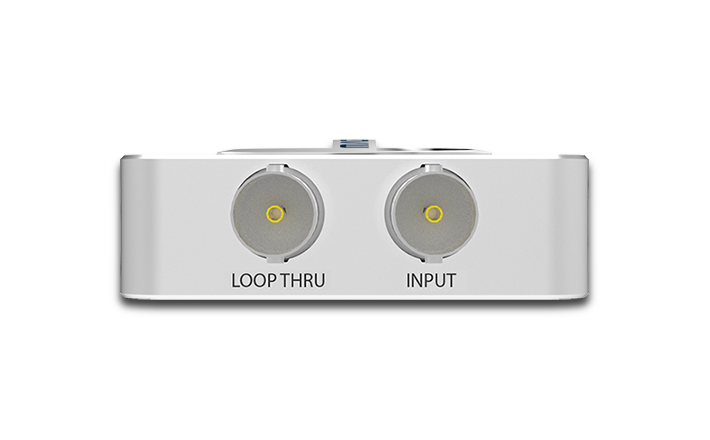

Input Interface & Loop-through Interface
  • One SD/HD/3G/2K/6G SDI input + embedded audio
  • One SDI loop-through
  • Support input & loop-through resolution up to 4096×2160 pixels

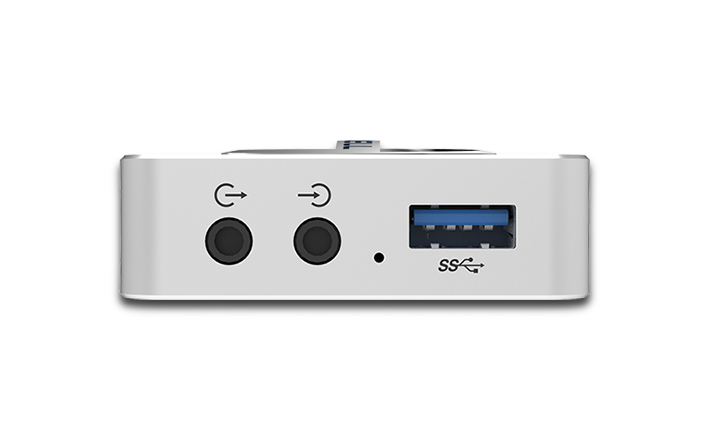

Audio Input/Output Interface
  • 3.5mm audio jack for Line In/ Line Out
Host-Interface
  • USB 3.0, compatible with USB 2.0
OS
  • Windows, Linux, Mac, Chrome OS
Capture format
  • Support capture resolutions up to 3840x2160p 30fps or 1920x1080p90
  • Capture 2-channel embedded audio or analog audio via 3.5mm unbalanced Line In interface
  • Capture SDI signals transmitted a long distance away: up to 150m for 3G-SDI signals, 75m for 6G-SDI signals
  • *Actual frame rate can be limited by the host and resolution
Included Software
  • USB Capture Utility, Capture Express, etc.
Compatible Software
  • Zoom Rooms, Microsoft Teams Rooms, Skype for Business, Google Hangouts, GoToMeeting, VLC, OBS Studio, XSplit, etc.
Others
  • Auto detection of input signal format
  • Windows-, Linux- and Mac-SDK
  • Continuously work for 24hx7
  • LED-status indicator
  • 3-year warranty
Accessory (included)

USB-3-Cable-ACC10001-x1-1
USB 3.0 Cabel
Part Number: ACC10001
Video Input: SDI
Input Interface: USB 3.0
Related links to "Magewell USB Capture SDI 4K Plus"
Read, write and discuss reviews... more
Customer evaluation for "Magewell USB Capture SDI 4K Plus"
Write an evaluation
Evaluations will be activated after verification.

The fields marked with * are required.

technical Specifications

Magewell USB Capture SDI 4K Plus technical Specifications

Input Features
Max input & loop through video at 6G 4K (4096×2160 30fps 4:2:2 10-bit)
Input RGB/YUV 4:4:4 10/12-bit, YUV 4:2:2 8/10/12-bit, RGBA/YUVA 4:4:4:4 10-bit
Up to 8-channel embedded audio
Input analog audio via 3.5mm line in
SD/HD/3G/6G-SDI BNC input & loop through
SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425)/6G 4k(ST 2081) standard
Input SDI signals transmitted up to 75m for 6G-SDI signal

Process and Capture Features
Video processing pipelines with ~640Mpixels/s processing bandwidth
Capture videos up to 4096x2160, frame rates up to 120fps. Outputs include (actual capture frame rate can be limited by the USB bandwidth and internal working frequency.):
  • 4096x2160p/3840x2160p 23.98/24/25/29.97/30
  • 2560x1440p60
  • 1920x1080p/1280x720p 23.98/24/25/29.97/30/50/59.94/60/90
  • 720x576p25
  • 720x480p30
Output NV12/I420/YUYV/UYVY/RGB24/RGB32 videos
Support video cropping, up/down scaling, de-interlacing, aspect ratio conversion, color format conversion, frame rate conversion, flip and mirror
Output audio of SDI signal via 3.5 mm line out
Up to 2 audio channels at 48KHz

Included Software
USB Capture Utility enables users to easily check and set the capture-related parameters, upgrade firmware of the capture device and export info needed for troubleshooting

SDK & APIs
The MWCapture SDK provides functions including signal status extraction, capture configuration and real-time audio & video capture, etc.
Windows DirectShow/Wave-API/DirectSound/WASAPI
Linux V4L2/ALSA
macOS AVCaptureSession/AudioUnit

Output Interface
USB 3.0
  • compatible with USB 2.0
  • compatible with USB 3.1 Gen 1

Compatible Software
Zoom Rooms
Microsoft Teams
Skype for Business
Google Hangouts
GoToMeeting
Gstreamer
VLC
OBS Studio
XSplit
QuickTime Player
Jede andere auf DirectShow/V4L2/AVCaptureSession basierende Kodierungs- oder Streaming-Software

Recommended OS
Windows 7/8/8.1/10/11/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64) and above
Linux x86, x64 & ARM architecture, with 2.6.35 and above
Linux x86, x64 & ARM architecture, with 2.6.35 and above
Chrome OS

LED-Indicator
Status LEDs indicate the working state of the device:
  • Pulsing slowly: input signal unlocked
  • On: input signal locked
  • Double blinks: memory abnormal or FPGA configuration failed
  • Off: firmware or power supply abnormal

Form Factor
4.36 inch (L) x 2.24 inch (W) x 0.67 inch (H) (110.7mm x 56.8mm x 17mm)

Accessories
1 × USB 3.0 Cable

Power Consumption
5V max current: ~0.86 A
max power consumption: ~ 4.3 W

Working Environment
Operating temperature: 0 to 45 deg C
Storage temperature: -20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing
